S+S Regeltechnik的传感器技术可满足设施自动化和机械工程领域的测量和控制需求。

S+S温度传感器TM65-MODBUS-T3介绍

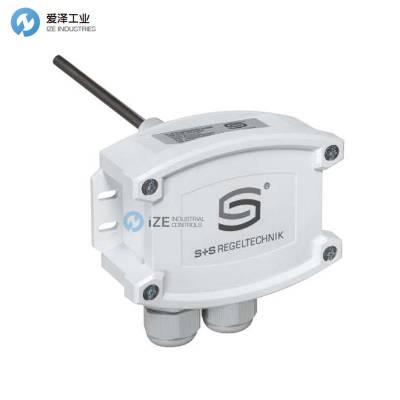

IMMERSION/ SCREW-IN/ DUCT TEMPERATURE MEASURING TRANSDUCER THERMASGARD? TM 65 - MODBUS - T3

Patented quality product (immersion sensor patent no. DE 10 2012 017 500.0)

Calibratable THERMASGARD? TM 65 - Modbus - T3 temperature measuring transducer with sensor tube, Modbus connection, in an impact resistant plastic housing with quick-locking screws, optionally with/without display, stainless steel protective tube (50–400 mm).

The duct temperature transmitter serves to detect the temperature in liquid or gaseous media. Use our stainless steel thermowells for aggressive media. Applications are found in heating engineering, ventilation and air conditioning ducts, pipes, storage systems, compact district heating stations, warm and cold water systems, oil and lubrication cycle systems, mechanical and systems engineering and the entire industry sector.

Innovative Modbus sensor with galvanically separated RS485 interface, selectable bus termination resistance, DIP switches for setting the bus parametres and bus address in current-free state, LEDs for telegram status display, two separate push-in terminals and a large back-lit three-line display with customised programming in the 7-segment range and dot-matrix ranges. The measuring transducer uses internal diagnostics to detect sensor breakage or shorts as errors. The error messages can be retrieved via Modbus and are shown on the display. The sensor is factory-calibrated and can be fine-tuned to ambient conditions by an expert.

浸入式/旋入式/管道温度测量传感器 THERMASGARD? TM 65 - MODBUS - T3

获得***的优质产品（浸入式传感器***号 DE 10 2012 017 500.0）

可校准的 THERMASGARD? TM 65 - Modbus - T3 温度测量传感器，带传感器管，Modbus 连接，在带快速锁定螺钉的耐冲击塑料外壳中，可选带/不带显示器，不锈钢保护管 (50–400 mm)。

管道温度变送器用于检测液体或气体介质中的温度。将我们的不锈钢热套管用于腐蚀性介质。应用在供暖工程、通风和空调管道、管道、存储系统、紧凑型区域供热站、冷热水系统、油和润滑循环系统、机械和系统工程以及整个工业领域。

创新的 Modbus 传感器，带电隔离 RS485 接口、可选总线终端电阻、用于在无电流状态下设置总线参数和总线地址的 DIP 开关、用于电报状态显示的 LED、两个独立的推入式端子和一个大型背光三在 7 段范围和点阵范围内具有自定义编程的线显示。测量传感器使用内部诊断来检测传感器破损或短路作为错误。错误消息可以通过 Modbus 检索并显示在显示屏上。该传感器经过工厂校准，可以由专家根据环境条件进行微调。

S+S温度传感器TM65-ECATP 150MM选型

S+S温度传感器其他常用型号：

S+S TM65-Modbus-T3 50mm

S+S sensor NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向***制造工业提供高端制造技术和设备。代理经营世界***的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供***解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于S+S温度传感器TM65-Modbus-T3 50mm的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。

If you have any question for S+S products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: .
